Description

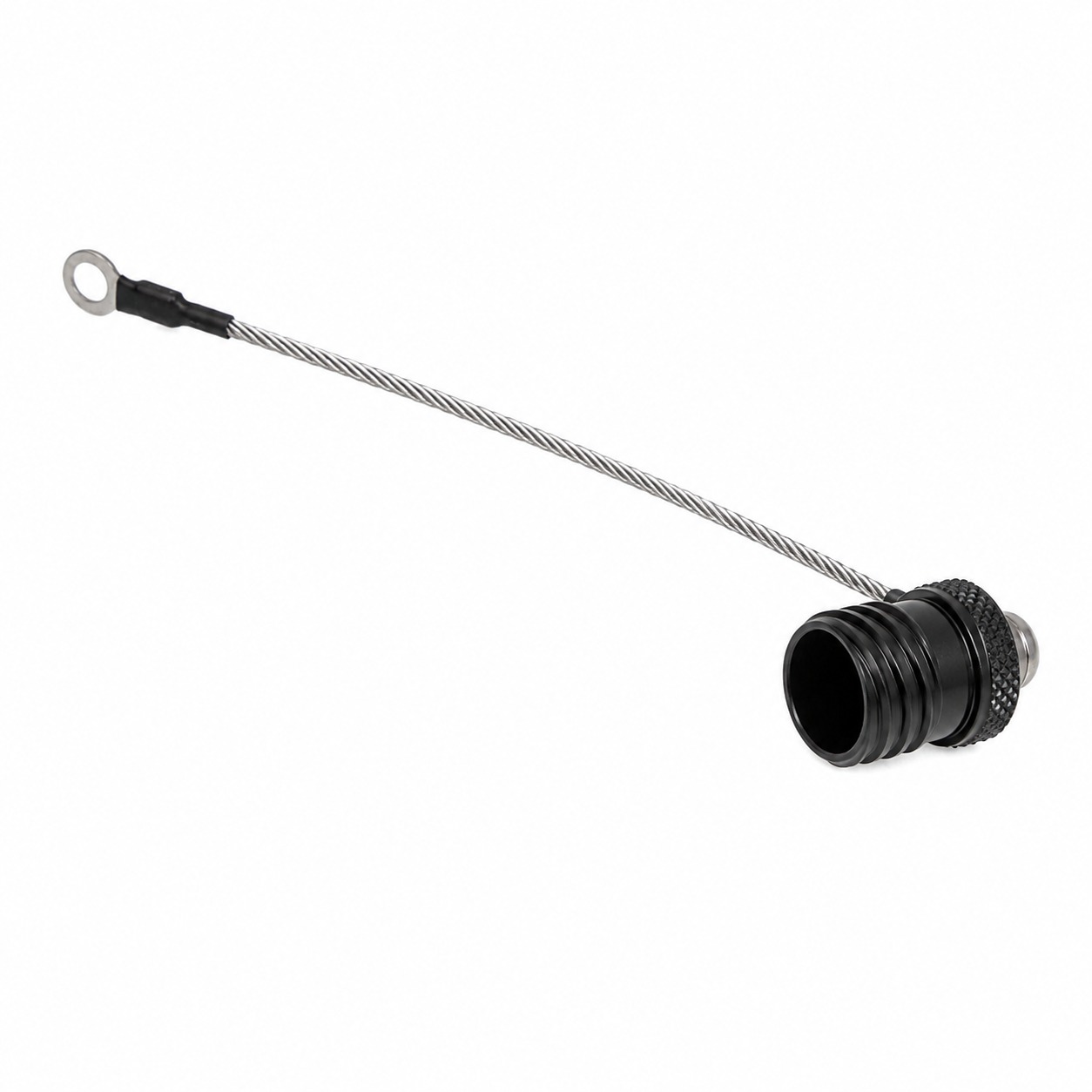

Protect unmated circular connectors from environmental contamination, physical damage, and signal degradation with the D38999/32Z9R receptacle dust cap. Manufactured to rigorous MIL-DTL-38999 Series III standards, this heavy-duty protective cover ensures reliable contact sealing and connector longevity in high-reliability military and industrial systems.

Featuring high-grade aluminum construction with Class Z Black Zinc Nickel plating, the D38999/32Z9R offers an environmentally friendly, RoHS-compliant alternative to Cadmium plating. It provides exceptional corrosion resistance (500-hour salt spray endurance) alongside excellent conductive EMI/RFI shielding. The integrated wire rope lanyard with a Ring terminal tethers the cap securely to your panel assembly, eliminating the risk of lost hardware during field service.

Key Features & Benefits

• Military Standard Compliance: Fully qualified to MIL-DTL-38999 Series III specs for reliable mating retention and rugged performance.

• Class Z Black Zinc Nickel Plating: Delivers 500-hour salt-spray corrosion resistance while maintaining electrical conductivity and full RoHS compliance.

• Tethered Wire Rope Lanyard: Equipped with a durable wire rope lanyard and a Ring end-link for easy mounting to panel cutouts or enclosure fasteners.

• Environmental Contact Protection: Shields unmated receptacle pins against ingress of dust, dirt, moisture, fuel, and chemical splash.

• Rugged & Lightweight: Durable aluminum alloy housing designed to withstand extreme shock, continuous vibration, and thermal cycling (-65°C to +175°C).

Technical Specifications

Applications

• Aerospace and Avionics Subsystems

• Defense Electronics and Tactical Communications

• Marine and Offshore Equipment

• Robotics, Industrial Automation, and Heavy Machinery

• Unmanned Aerial Vehicles (UAVs) and Ground Support Systems
